Sliding Gate
Product Description
A sliding gate is a clear passage fence that can be rolled to one side, thanks to its motor. For access control and security purposes, we offer sliding gate automation.
3 TO 5 YEARS WARRANTY!
Being the leader in gate automation, Meccanica FADINI has solutions that are complete and very functional to automatize gates, garage doors, and industrial doors, which include a standard or heavy duty system depending on the weight of door / cycle required for:

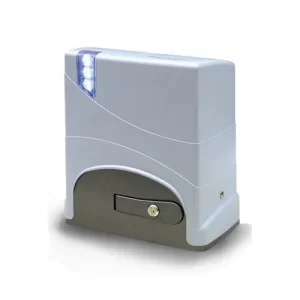

Junior Gate Openers
- Self-learning of the run pattern and the slowdowns
- Obstacle detection and gate direction reversing
- Adjustable pedestrian opening
- Ready for a second sliding gate installation: Master – Slave
- Manual unlock handle with coded key
- Automatic closing on passing over photocells
- 230V single phase motor
- In compliance with the EN 12445 and EN 12453 safety standards and the EN 13241 product standard

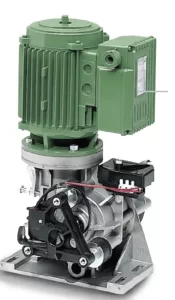

MEC 200: Electromechanical Sliding Gate Operator
- Electromechanical equipment for any dimension gate
- Can withstand settling & expansion effects
- The programmer transmits the commands, performs either automatically or semi automatically
- Connected to devices that avoid running over & crushing
- In conformity with EN 12445 safety regulations
- Can be provided with horse power ratings: 0.5 HP – 1.0 HP (2/3phase) – 1.5 HP (3phase)

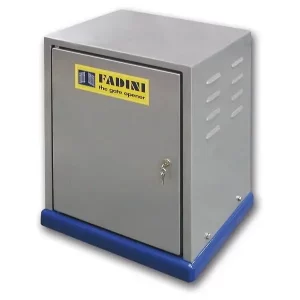

FIBO: Electromechanical Sliding Gate Operator For Heavy Gates Weighting up to 4,000 kgs
- The FIBO 300 (2.0 KW-1.5 HP three-phase)
- FIBO 400 (2.2 KW- 3 HP three-phase)
- Strong and robust electromechanical sliding gate operators
- For large industrial gates and entrances weighing up to 4000 kg.
- The FIBO 300 / 400 operator is enclosed inside a protective steel case, equipped to house an electric power panel and electric programmer
Gate Accessories:
