Sliding Gate

Description

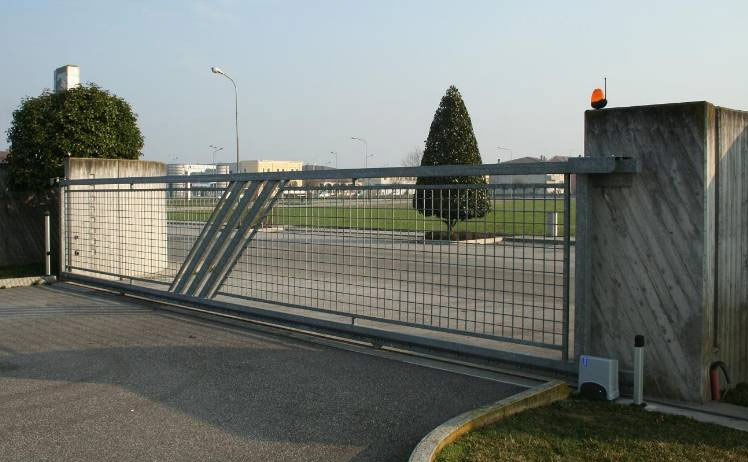

A sliding gate is a clear passage fence that can be rolled to one side, thanks to its motor. For access control and security purposes, we offer sliding gate automation.



3 TO 5 YEARS WARRANTY!

Being the leader in gate automation, Meccanica FADINI has solutions that are complete and very functional to automatize gates, garage doors, and industrial doors, which include a standard or heavy-duty system depending on the weight of door/cycle required for:

• Sliding gate
• Swinging gate
• Basculant gate

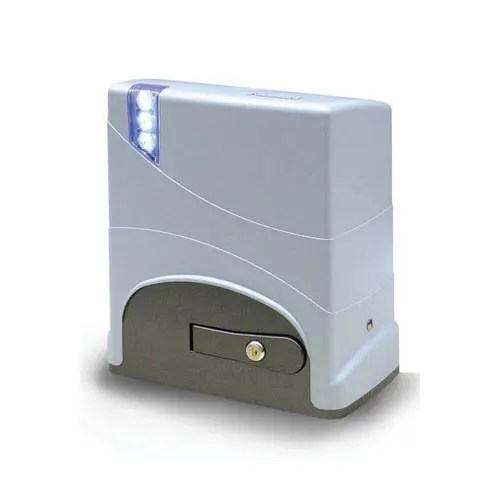

Junior Gate Openers

• Self-learning of the run pattern and the slowdowns
• Obstacle detection and gate direction reversing
• Adjustable pedestrian opening
• Ready for a second sliding gate installation: Master-Slave
• Manual unlock handle with coded key
• Automatic closing on passing over photocells
• 230V single-phase motor
• In compliance with the EN 12445 and EN 12453 safety standards and the EN 13241 product standard

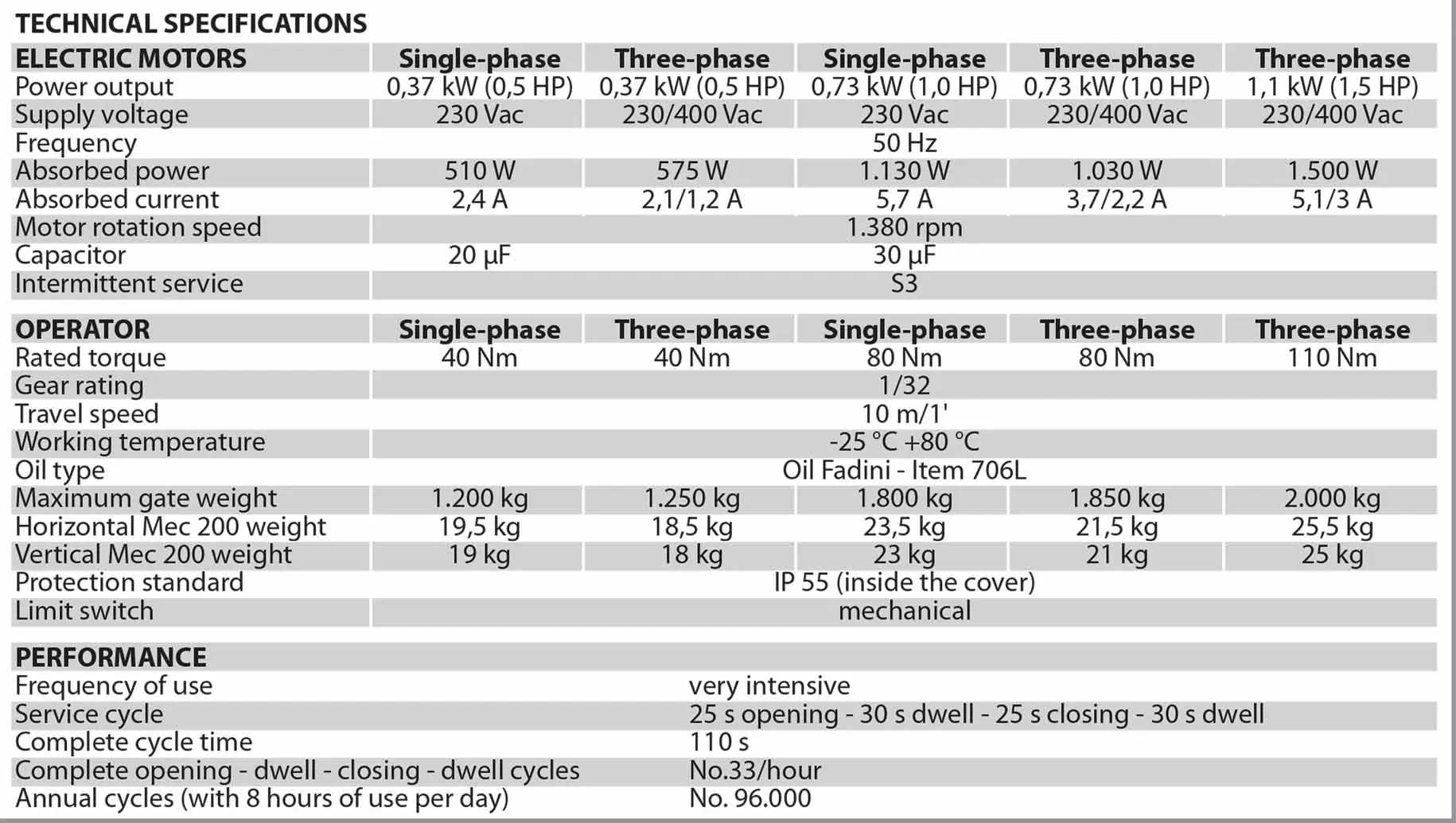

MEC 200: Electromechanical Sliding Gate Operator

• Electromechanical equipment for any dimension gate
• Can withstand settling & expansion effects
• The programmer transmits the commands, performs either automatically or semi-automatically
• Connected to devices that avoid running over & crushing
• In conformity with EN 12445 safety regulations
• Can be provided with horsepower ratings: 0.5 HP – 1.0 HP (2/3phase) – 1.5 HP (3phase)





FIBO: Electromechanical Sliding Gate Operator For Heavy Gates Weighting up to 4,000 kgs

• The FIBO 300 (2.0 KW-1.5 HP three-phase)
• FIBO 400 (2.2 KW- 3 HP three-phase)
• Robust electromechanical sliding gate operators
• For large industrial gates and entrances weighing up to 4000 kg.
• The FIBO 300 / 400 operator is enclosed inside a protective steel case, equipped to house an electric power panel and electric programmer

Gate Accessories:
