Description
Specifications:

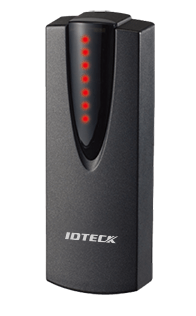

Model: RFL 200C
User: 512 users
Event buffer: 256 event buffer
Door open time: 1~99sec. (programmable)
Communication: RS485 (max. 255ch/default) RS232 (Optional) TCP/IP (external LAN converter required) Wireless (e.g. Bluetooth module required)
Baud rate: 9,600 bps
Input port: 3ea (exit button, door sensor, Aux #1)
Output port: 2ea (TR output/ DC 12V~18V, rating max. 2A, lock output)
LED indicators: 9 array LED indicators (red and green)
Beeper: piezo buzzer
Operating Temperature: Controller -35°C to +60°C, RF reader -35°C to +65°C
Operating humidity: 10% to 90% relative humidity non-condensing
Color: dark pearl gray
Material: polycarbonate
Dimensions: 124mm(H) x 45mm(W) x 19.64mm(T)
Weight: 80g
Certification: FCC, CE, MIC
