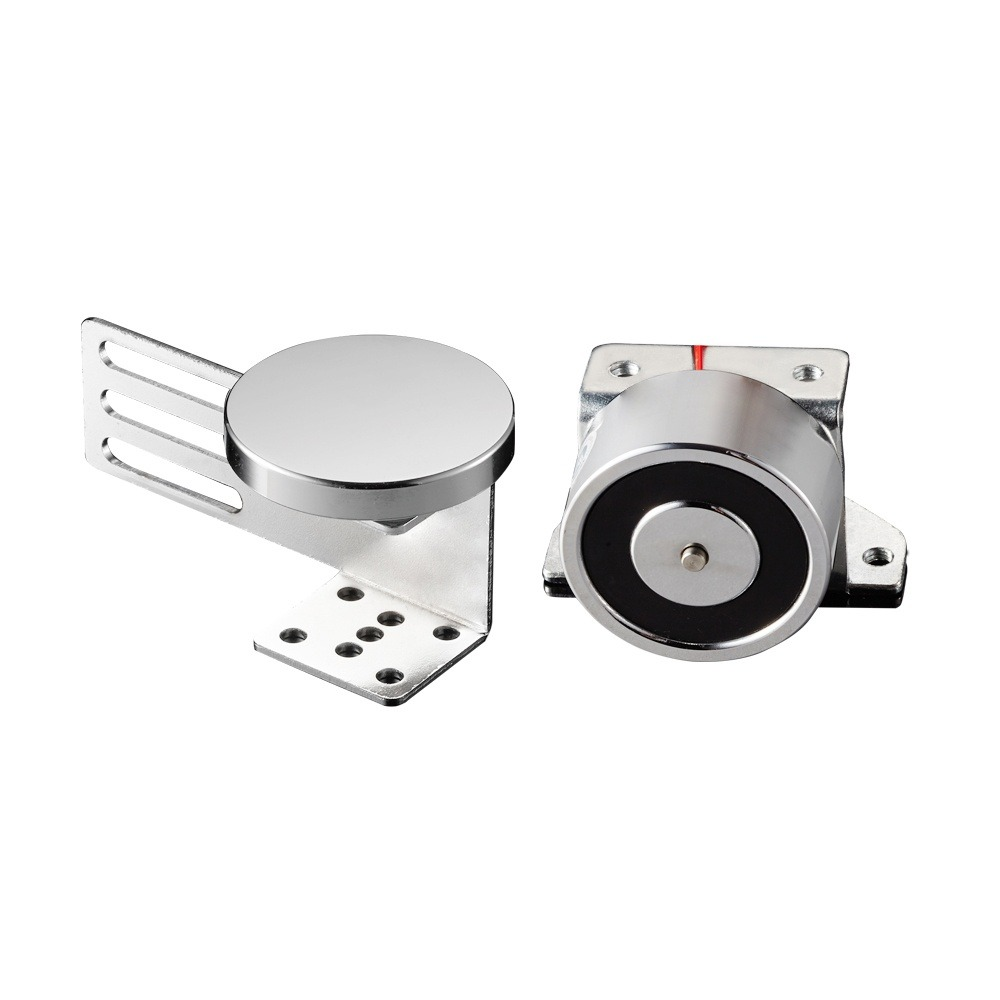

Magnetic lock for auto-door tag-608AUTOD

Description

YD-608 is a magnetic lock special for auto-door with 70KG (150lbs) static collinear holding power. 12VDC and 24VDC selectable, easy installation, suitable for all brands of auto-door.

Specifications:
Auto door slide way
Lock Size: 70Lx70Wx58H(mm)
Armature plate: 100Lx53Wx50H(mm)
Holding Force: 70kg(150Lbs)
Voltage: 12VDC+10%(24VDC need order)
Current Draw: 12V/180mA 24V/120mA
Suitable for: Auto-door
Surface Temp: 50°
Operating Temp: -10~+55 (14-131F)
Suitable Humidity: 0~90%(relative humidity)
Surface Treatment: High Temperature Paint and Environmental Protection Zin
Weight: 0.8kg

Advantage:

Special design and suitable for any auto-door.
The standard voltage is 12VDC when produce.
No Fault Diagnosis, safety, durable.
Professional design, easy to install.
Selected product by Auto-door manufacturer.
CE Certificate by European Union.
