Gent Leaders in Fire Detection and Alarm Technology

Gent by Honeywell is a leading manufacturer of innovative and flexible fire detection products and fire alarm systems. With its wide network of experts across the UK, Gent offers end users unmatched choice and control over their fire safety system. With a proud UK manufacturing heritage dating back to the 1930s, Gent has become a technology brand that’s recognized across the globe.

ZOD Security: Gent Approved Partner

Across the world, Gent works in partnership with approved distributors who supply Gent equipment and carry out design, installation, commissioning, and maintenance operations to the highest standards of workmanship.

Fire Alarm system are available in 2 technologies:

1. THE CONVENTIONAL SYSTEM
2. THE ADDRESSABLE SYSTEM

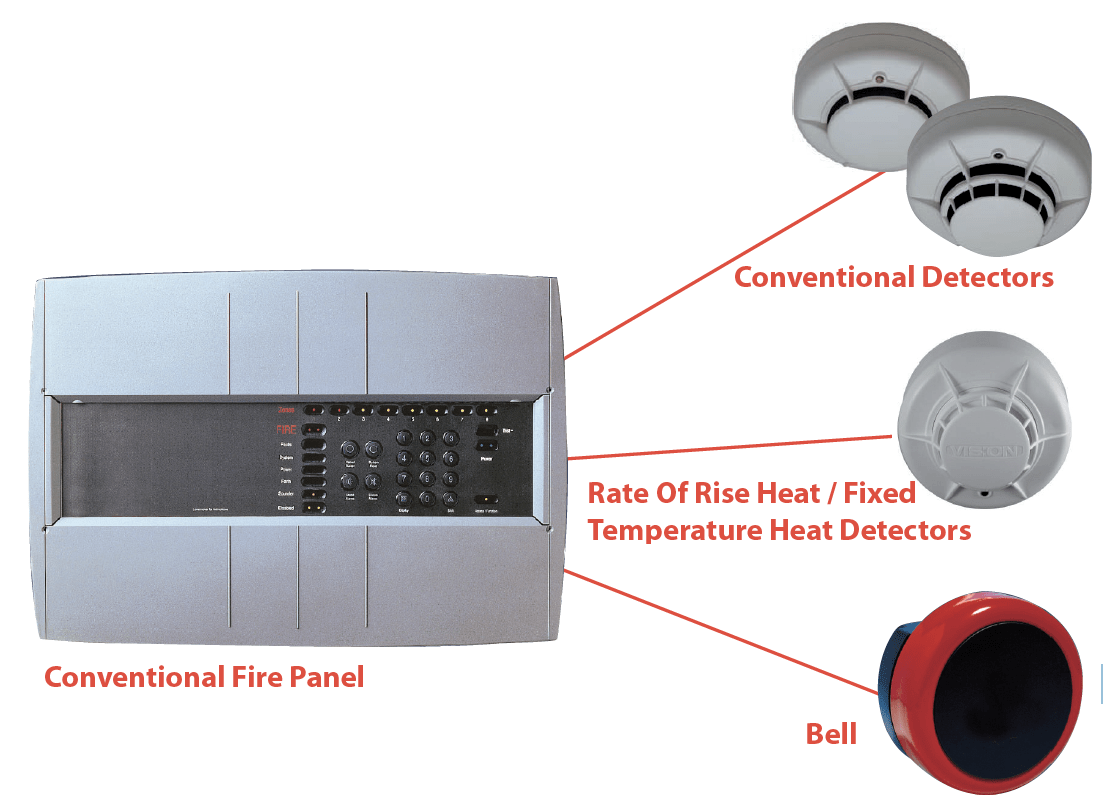

THE CONVENTIONAL SYSTEM

From control panels through to manual call points, detectors, bells, door releases and sounders, Gent by Honeywell provides a cost effective conventional fire detection system scalable for sites of all types.

The Conventional Fire Alarm System is composed of:

Conventional Detectors :

• Dust tolerant optical chamber design
• Standard base with remote LED output
• Single, multi-function LED indicator
• Exist in 3 models:
  1. Photo-thermal detector
  2. Photoelectric smoke detector
  3. Fixed temperature thermal detector

Rate Of Rise Heat / Fixed Temperature Heat Detectors :

• Uses a state of the art heat element
• Combined with an application specific integrated circuit (ASIC) to provide quick and accurate detection of fires
• Incorporates both rate of rise & static elements
• Is suitable for all areas where the ambient conditions do not normally exhibit rapid changes in temperature.

Bell

• An electric bell for a wide range of uses
• Metal casing available in red or grey finish
• Suitable for semi flush or surface mounting

THE ADDRESSABLE SYSTEM

The addressable fire alarm system includes the following:

• All devices on a common 2 x 1.5mm circuit
• 200 devices per loop
• 2 kilometers loop length
• Loop Powered Sounders.
• Flexible architecture allows spurs

Composed of:

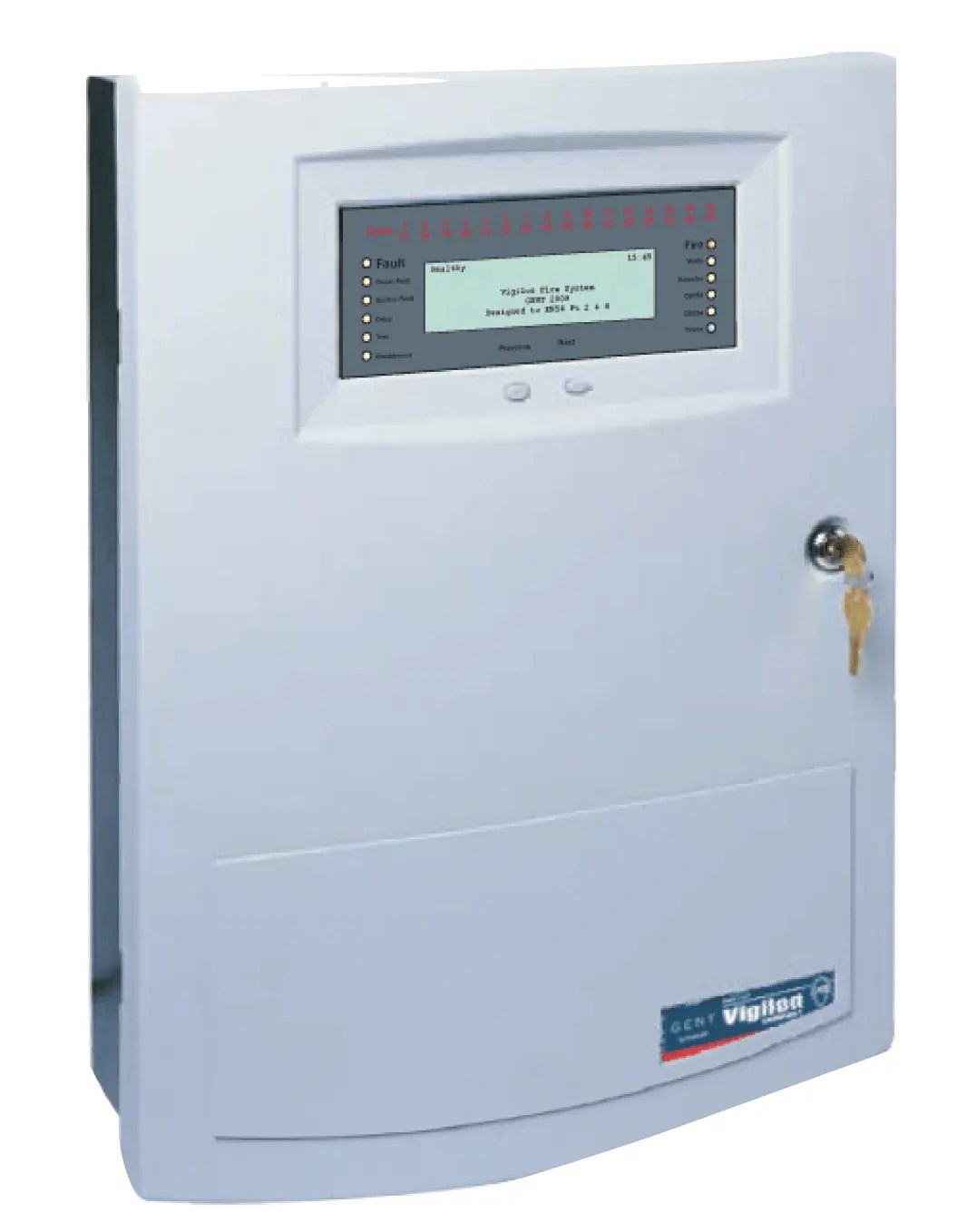

Analogue Addressable Panel :

• 1-6 Loop panels
• Up to 200 devices on each loop
• Options include a full range of sensors, electronic speech sounders, repeat panels, interfaces & manual call points.
• 8-line by 40 character display printer
• 24 hour battery standby
• Advanced networking options allow multi domain networks of up to 250 panels

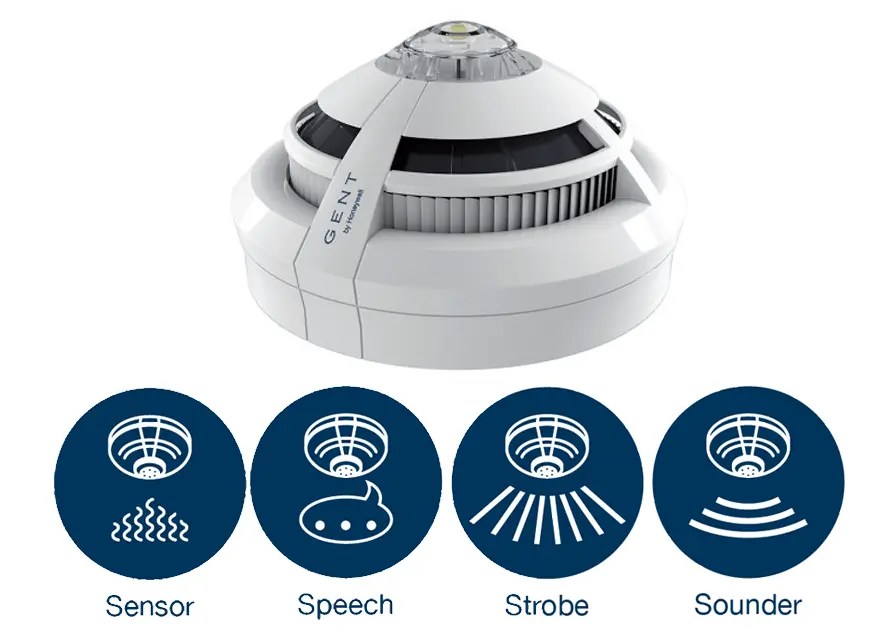

S-QUAD Detectors :

1. Put an end to False Alarms
2. Save Time and Money
3. Four functionalities all in ONE sensor

• Setting New Industry Standards
• Cost effective, 4 Devices in One:
  • Sensor : smoke / heat or combined smoke / heat & CO
  • Sounder
  • Speech: Improve Evacuation / Voice Messages
  • Strobe
• Combined sensor and sounder technology
• Solution for fire detection & alarm signaling
• Distinction between Smoke and Steam
• Plug and Play: SOFT/ SAFE Addressing Technique

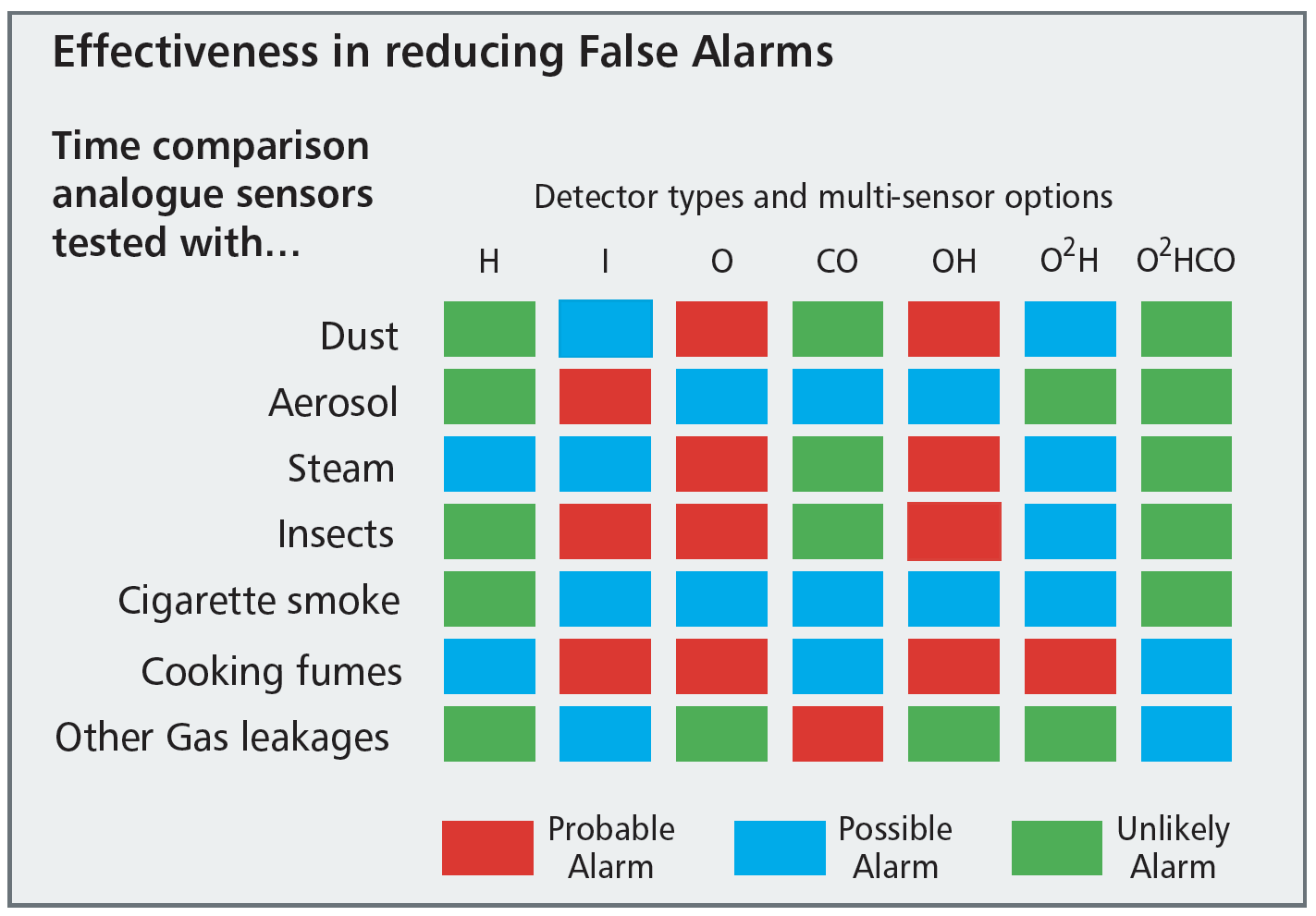

• Minimize False Alarms: Clear Intelligible Decision making

Loop Powered Beam Addressable Detectors :

• Multi-Sensor Options
  • O – Optical Sensor
  • H – Heat Sensor
  • H/Snd – Heat/Sounder
  • HSt – Heat+Strobe
  • O/H – Optical/Heat
  • O/H/Snd – Optical/Heat + Sounder
  • Dual Angle Optical Technology O²H
  • O²H – Dual Angle Optical+Heat
  • O²HS – Dual Angle Optical+Heat+Sounder
  • O²HS – Dual Angle Optical+Heat+Voice Sounder
  • Dual Angle Optical and Gas with Sounder/ Speech/Strobe
  • O²HSt – Dual Angle Optical+Heat+Strobe
  • O²HStSp – Dual Angle Optical+Heat+Strobe+Speech/Sounder
  • O²HCO – Dual Angle Optical+Heat+CO
  • O²HCOStSp – Dual Angle Optical+Heat+CO+Strobe+Speech/Sounder
  • Optical chamber using O2
• Dual Angle Measurement : 2 Emitters / 1 Receiver
• First Measure Forward Scatter (every 1/3rd of a second)
• Second Measure Backward Scatter (Every 1.3 minutes or after Change of state on first measure)

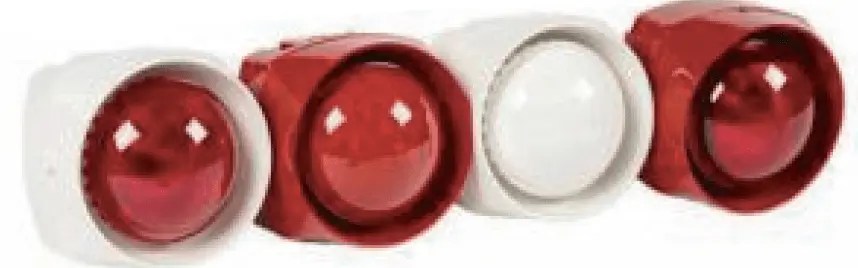

 S-Cubes Sounders and Strobes : A versatile range of alarm sounders, incorporating sound, speech and strobe effects.
