Description
Compact surge protective module for the protection of data networks, and network devices such as hubs, switches, server. The adaptor plug style provides an easy application in cable ducts or directly at the terminal equipment.
Suitable for Cat. 5
Compatible to 10Base T / 100Base T
Applicable at the boundaries LPZ 1 – 2 and higher
Test standard: IEC 61643-21 / EN 61643-21

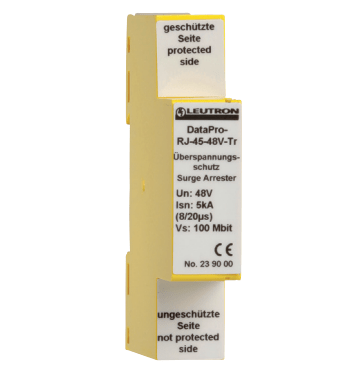

RJ45 SPD for mounting on rails
RJ45 SPD for PoE (Power over Ethernet)
Technical Data:
IEC category: C2 / C1 / C3
Nominal voltage DC: 48 V=
Max. continuous operating voltage DC: 57 V=
C2 nominal discharge current (8/20 µs): 5 kA
Protection level at 1kV/μs: ≤ 500 V
Protection level at In (8/20 µs): ≤ 600 kV
Max. frequency: ≤ 100 MHz
Operating temperature range: -40°C +80 °C
Type of connection: RJ 45, shielded
Degree of protection (IEC EN 60529): IP 20
Dimension (DIN 43880): 1 TE
Housing material: polycarbonate (halogen-free) UL 94-V0 / yellow
