Product Description

Xray security scanners are used to scan luggage, baggage or parcels, they smartly classify the materials scanned based on their composition, to identify the type of item being scanned (metal, organic, inorganic, mixed, etc) in order to detect suspicious items. Thanks to this method, the xray security operator can see on the screen both the shape and the material of the content of the scanned items.

Often used in airports, xray luggage scanners are also referred to as airport scanners, although frequently used in other locations. Those types of security scanners can even be found in public facilities such as hotels and other common locations.

Many features and models are available. Contact our experts to get adequate assistance in your choice.

General Specifications

• Conveyor speed: 0.2m/s
• Resolution: 40AWG (diameter 0.0787mm tinned copper)
• Penetration: ≥32 mm steel
• Spatial Resolution: Horizontal Φ1mm; Vertical Φ1mm

Image Processing System

• Display: Colorful Black & White
• Resolution: 1280×1024 (17inch LCD)
• Processing and Gray scale: 24 Bit real time/4096
• Zoom function: up to 32x

X-ray Generator

• Anode Voltage: 160KV (adjustable)
• Beam Direction : from bottom
• Cooling & Running Cycle: sealed oil cooling & 100%
• X-ray Sensor: Multi-Energy L photoelectric diode array detector

X-ray Security

• Single Inspection dose: 2μGy
• Leakage: <1μGy/h (from the shell 5cm) according to the international safety standard
• Film Safety: according to the ISO 1600 (33DIN) high speed standard

Optional Functions

• High Density Area Alarm
• TIP: Threat Image Projection
• OTP: Operator Training Program
• X-Auto Sight Contraband Auxiliary Recognition System
• Environment Protection and Energy Saving

Other info

• Working Temperature / Humidity: 0°C~+45°C / 20%~95% non condensing
• Storage Temperature / Humidity: -40°C~+60°C / 20%~95% non condensing
• Power Supply: AC 220V (+10%~-15%) 50±3 Hz

Dual Vision : Models can be ordered with double X-ray Generator

• Multi Energy L photoelectric diode array detector
• Beam Direction: from Bottom to Top and from Side

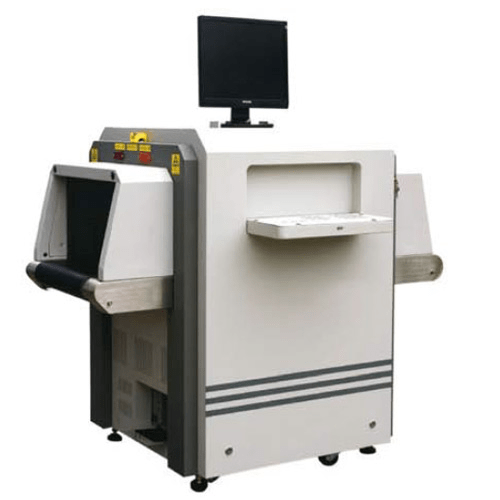

ME5030 : Multiple Energy X-ray Detection

• Tunnel Size: 505W x 305H mm
• Power Consumption: ~0.41KVA
• Max Load: 160Kg



ME6550 : Multiple Energy X-ray Detection

• Tunnel Size: 650W x 500H mm
• Power Consumption: ~0.45KVA
• Max Load: 160Kg

ME6550-DV is available in Dual Vision.



ME6040 : Multiple Energy X-ray Detection

• Tunnel Size: 615W x 415H mm
• Power Consumption: ~0.45KVA
• Max Load: 160Kg



ME8065 : Multiple Energy X-ray Detection

•  Tunnel Size: 810W x 650H mm
• Power Consumption: ~0.45KVA
• Max Load: 200Kg

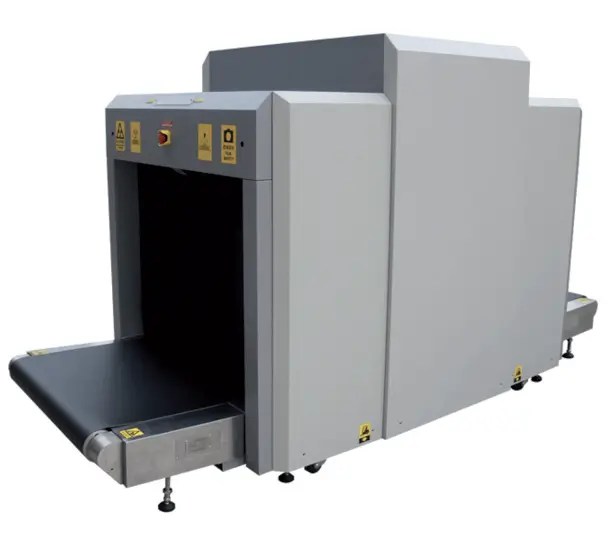

ME10080 : Multiple Energy X-ray Detection

• Tunnel Size: 1010W x 810H mm
• Power Consumption: ~0.47KVA
• Max Load: 200Kg

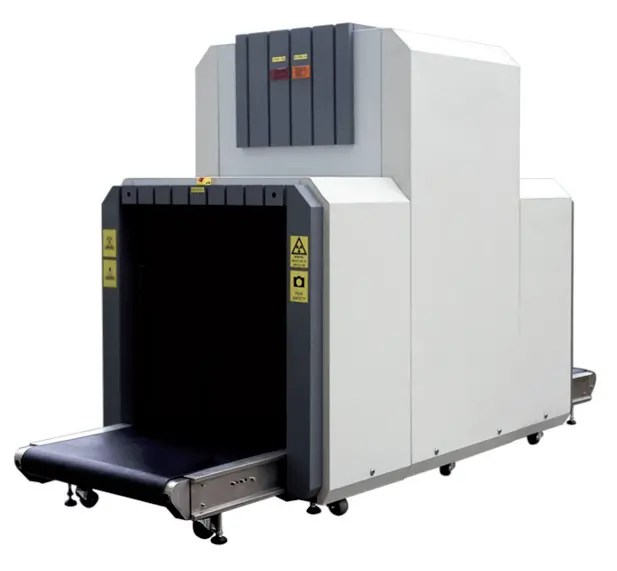

ME100100 : Multiple Energy X-ray Detection

• Tunnel Size: 1010W x 1010H mm
• Power Consumption: ~0.51KVA
• Max Load: 200Kg



For more information, send us your request:
